Airfan Steel Softbox ~ Ventilation box

€154,95
The Airfan Steel Softbox allows you to easily control the climate in your space.

Available in: 250m3 | 550m3 | 750m3 | 1200m3 | 1500m3 | 2000m3 | 2500m3....More information
PASSEND ASSORTIMENT
LEVERING IN HEEL EUROPA
14 DAGEN RETOURRECHT
Product information
  • Article number: 6-6-250 SS

Regulate your climate with the Airfan Steel Softbox

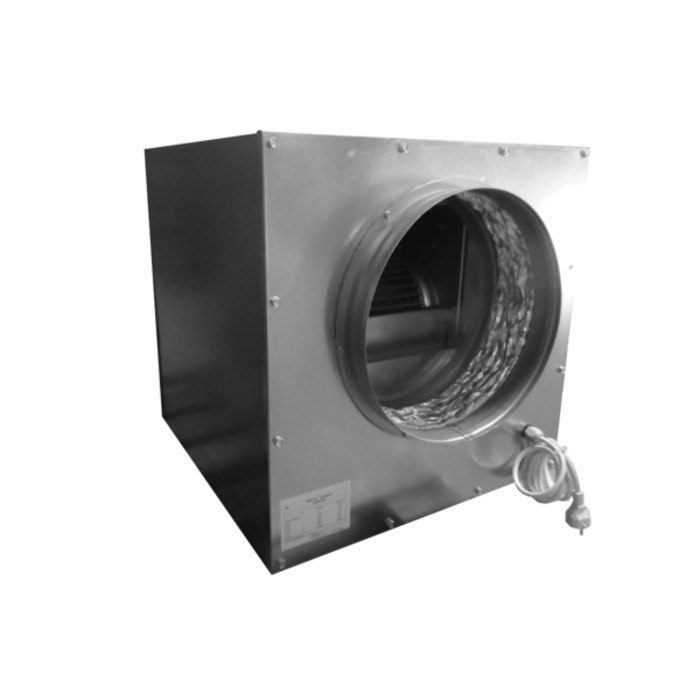

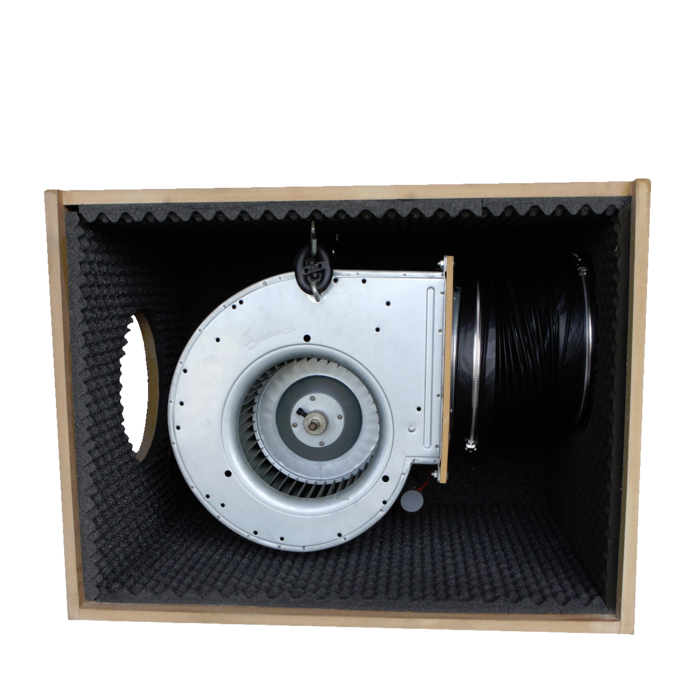

With the Airfan Steel Softbox, you can easily regulate the climate in your space. These boxes are manufactured from steel with an inner lining of sound-absorbing foam. You can use these boxes as an exhaust or fresh air supply to regulate your climate. The main difference between a soft box and a standard fan box is that the motor of a soft box hangs in rubbers. These boxes come with the corresponding flanges.

Note: These boxes are delivered without a connecting cable! These crates must be transported upright due to the motor hanging loose, this is transported on a pallet.



    250m3
  • Dimensions box: 350x350x350mm
  • Discharge: 125mm
  • Suction: 125mm
  • Amps: 0.4 A
  • Weight: 9.6 kg
    550m3
  • Dimensions box: 350x350x350mm
  • Discharge: 160mm
  • Suction: 160mm
  • Amps: 0.7 A
  • Weight: 9.8 kg
    750m3
  • Dimensions box: 350x350x350mm
  • Discharge: 200mm
  • Suction: 200mm
  • Amps: 1.2 A
  • Weight: 9.9 kg
    1200m3
  • Dimensions box: 450x450x450mm
  • Discharge: 250mm
  • Suction: 250mm
  • Amps: 1.1 A
  • Weight: 18.8 kg
    1500m3
  • Dimensions box: 450x450x450mm
  • Discharge: 250mm
  • Suction: 250mm
  • Amps: 1.4 A
  • Weight: 19 kg
    2000m3
  • Dimensions box: 550x550x550mm
  • Discharge: 250mm
  • Suction: 250mm
  • Amps: 1.9 A
  • Weight: 28 kg
    2500m3
  • Dimensions box: 550x550x550mm
  • Discharge: 250mm
  • Suction: 250mm
  • Amps: 2.6 A
  • Weight: 28.6 kg

Note: Never run this extractor box at less than 30% of its power. The motor in this box is cooled by air, if the box is run at less than 30% it will overheat with all its consequences.
