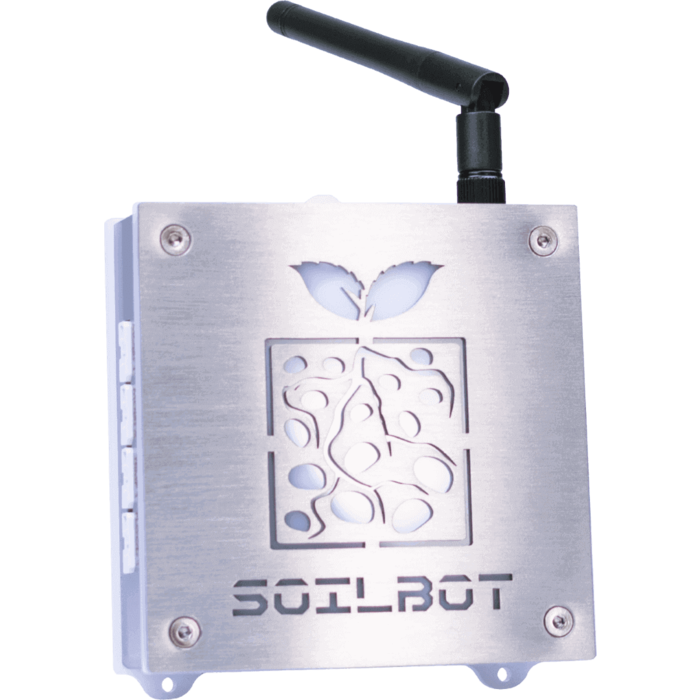

GroLab SoilBot - Substrate analyzer Module

NOTE! All GroLab products have a longer delivery time!

THE VERSATILE SUBSTRATE ANALYZER

SoilBot is the perfect tool for analyzing plant substrates, be it soil, rockwool, coconut fiber or even repeatedly dipping roots in water (Hydroponic).

SoilBot continuously receives data from various sensors, such as: humidity, temperature and even flood detection. This way you always know the condition of the substrate and even if there is a problem, such as water leakage, plants with water shortage, etc.

In combination with PowerBot or TankBot you can automate the irrigation process, maintaining the perfect humidity for your plants and preventing water wastage and flooding.

*Extra GroLab module, one GroNode is required to experience the full functionality of SoilBot.

*Each GroNode can control up to 4 SoilBot's.

	Moisture SoilBot has the ability to control the moisture of any substrate, whether it is soil, rockwool, coir, or a recurring dipping of roots in water. That's right SoilBot can also be used in a hydroponic set-up! It supports up to 4 moisture sensors giving you the ability to monitor 4 different groups of plants simultaneously. When combined with PowerBot or TankBot , you can automate their irrigation processes, maintaining the perfect humidity for your plants and preventing water waste and flooding.
	Temperature With this versatile module, even the temperature of the substrate can be fully monitored. SoilBot supports 2 temperature sensors which greatly expands the substrate analysis possibilities. By combining SoilBot with PowerBot or TankBot, it is possible to create procedures to keep the substrate temperature at the perfect value for your plants to continue growing healthier.
	Flood prevention and detection Equipped with a flood detection system, it will quickly detect water leaks and excess water and automatically activate the security functions programmed by the user to limit damage and even notify you of any anomaly.
	LED Indicator The design features an LED that indicates whether the module is currently powered on and the status of its connection to GroNode (the core module of the system).
	Module Communication The SoilBot communicates with the GroNode (the core module of the system) via radio frequency with a range of 25 meters indoors (depending on obstacles) and 100 meters in open areas. This makes it easy to install the TankBot close to the water tank.

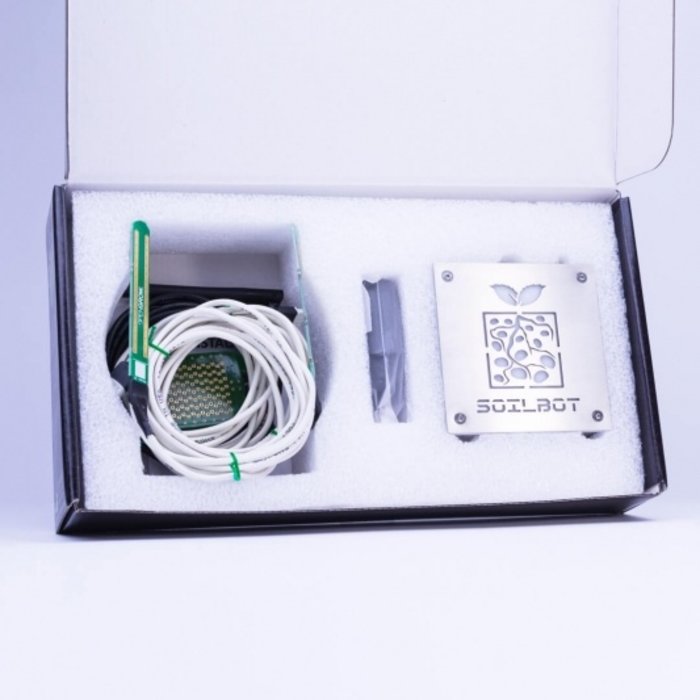

Contents

• SoilBot
• Moisture sensors (2x)
• Temperature sensors for substrate
• Flood detector
• USB power supply
• USB cable
• Antenna

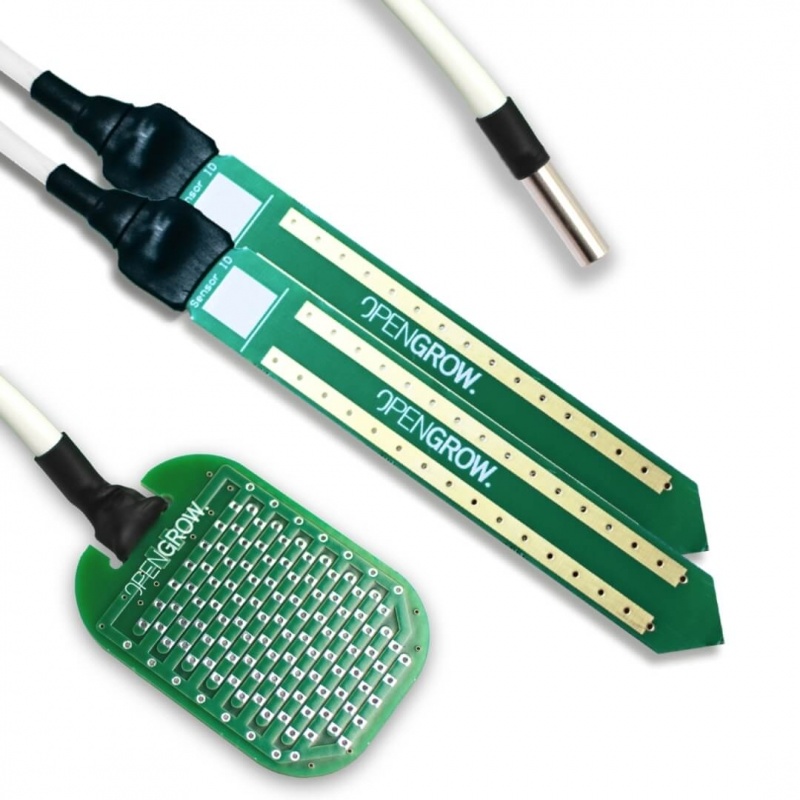

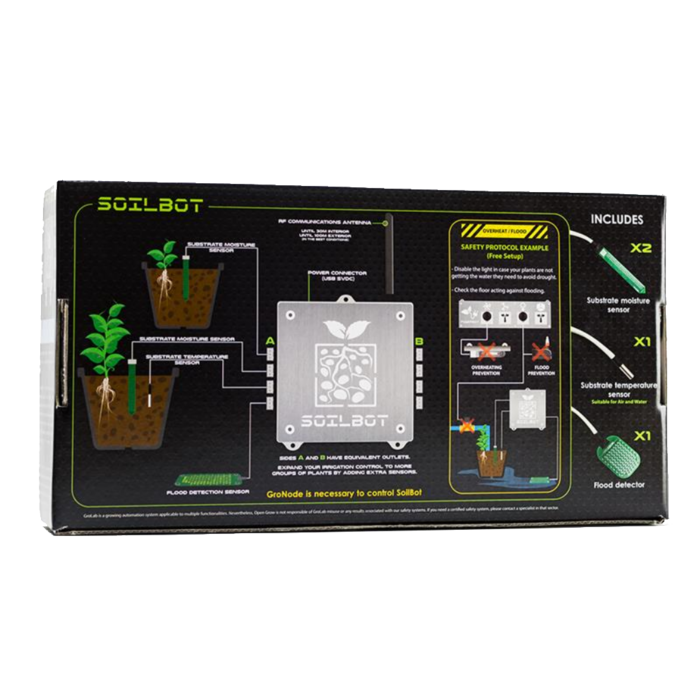

What sensors can I connect to SoilBot?

At its core, SoilBot can measure soil, air or water temperatures in 2 places. It can also read up to 4 moisture sensors and also 2 flood detectors.

2 humidity sensors, 1 temperature sensor and 1 flood detector are included with the SoilBot.

All of these sensors come with a 4-pin quick connector that can be connected directly to SoilBot, allowing the SoilBot to be assembled in minutes.

Specifications

• Dimensions: 91mm x 91mm x 28.7mm
• Exterior:

  • Housing: Stainless Steel
  • Colors: Silver
  • Physical Buttons: Reset
• Power supply: USB - 5VDC 1000mA
• Connections:

  • USB 2.1 type B
  • RP-SMA female
  • Power supply 12V/1A 24V/2A
  • 4 x humidity sensor (2.5 mm 4-pin male)
  • 2 x Temperature sensor (2.5 mm 4-pin male)
  • 2 x Flood Detector (2.5mm 4-pin male)
• Antenna Included: Yes
• USB Cable Included: Yes (Type B-A)
• USB cable length: 2 meters
• USB Power Adapter Included: Yes
• Sensors Included:

  • 2 x moisture sensor
  • Temperature sensor
  • Flood detector
• Communication between modules: Radio frequency - 2.4 GHz
• Visual indicators: LED
