To measure is to know, to control is better

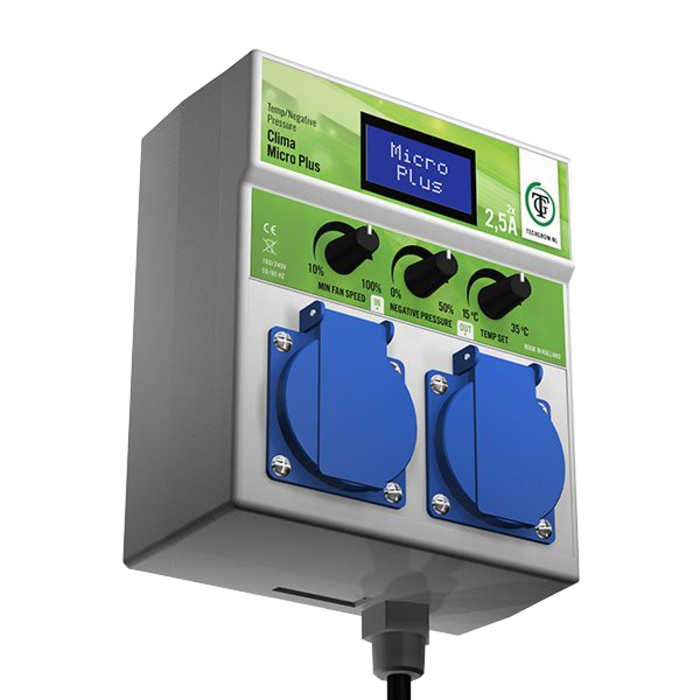

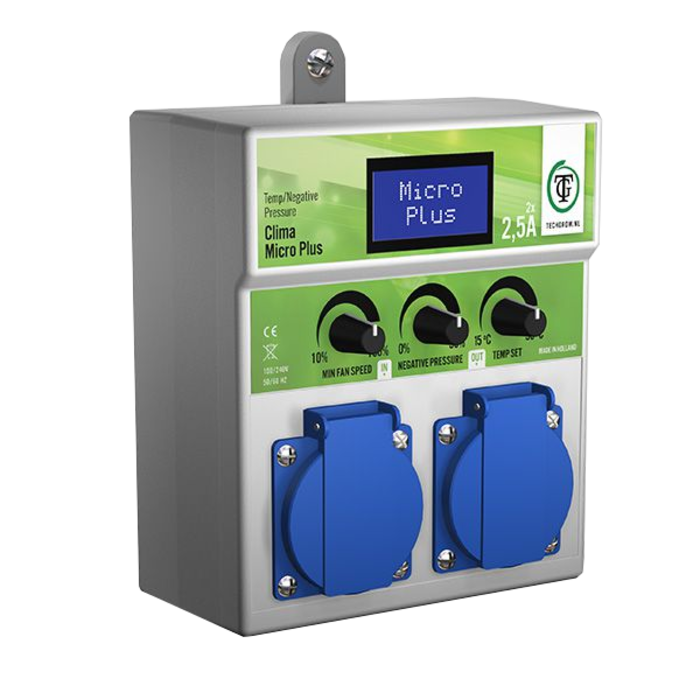

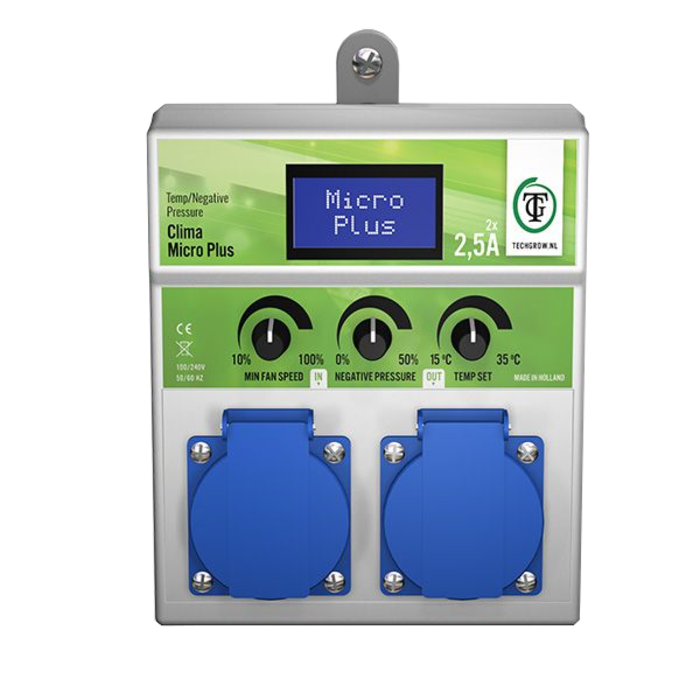

With the TechGrow Micro Plus Temp/Negative Pressure Control you can easily create the correct temperature and negative air pressure in your space. This controller not only regulates the minimum rotation speed of the main fan (extractor) to achieve or maintain the desired temperature, but also regulates the desired negative air pressure of the second fan (extractor) for optimum air circulation.
This controller works on the basis of the set minimum fan speed, temperature and hysteresis, negative air pressure, and the maximum fan speed. On the display present you can read the actual values of the connected sensor, this concerns the actual temperature and the registered minimum and maximum values. The TechGrow Micro Plus Temp/Negative Pressure Control can be installed in no time at all, with the option of setting a hysteresis for the temperature.
Properties
- The Clima Micro Plus Temp/Negative Pressure Control can measure and display the actual temperature of connected sensors and register and display the minimum/maximum values
- This controller regulates the minimum rotation speed of the main fan to achieve or maintain the desired temperature; it also regulates the desired negative air pressure by means of a second fan
- Minimum fan speed, temperature setpoint and negative air pressure setpoint are retained in the event of power interruption
- Temperature setting range: 15 °C - 35 °C
- Hysteresis Temp: 1 °C - 5 °C
- Negative air pressure setting range: up to 50% of main fan rotation speed
- Minimum fan speed setting range: 10% - 100%.
- The display is updated every second
- Automatic switch-off of the display backlight after 60 seconds
- Automatic detection of cable break or poor contact with the connected sensors
- 2 UTP ports
- 2 sockets
- Available in the version: 2 x 2.5 A
- Easy to replace fuse (spare fuse included in delivery)
- Minimum sensor required: TempProbe
- Compatible sensors: TempProbe & Temp/RH
Specifications
- Controls: Suction fan & Exhaust fan
- Display: Yes
- Characters on display: 2 x 8
- Displays: Temp, fan speed, min & max, negative pressure
- Sockets: 2
- Temp range: 15 °C - 35 °C
- Minimum fan speed setting range: 10% - 100%
- Negative pressure range: 0 - 50%
- Power supply: 100v - 240v
- Internal consumption: 3 Watt
- Fuse protection: 5 Amp
- Triac: 2 x 12 Amp
- Power cord: 3 x 1.5mm / 1.7m
