Digital Combination Meter

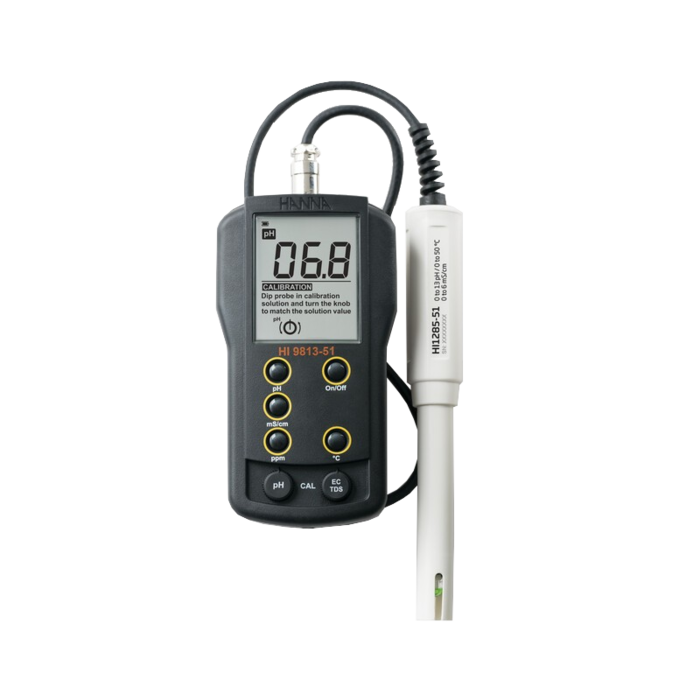

The Hanna Portable pH/EC/TDS Meter (HI9813-51) is an economical, water-resistant, portable meter that measures pH, conductivity (EC), total dissolved solids (TDS) and temperature with one probe. The HI9813-51 portable meter has a large LCD screen that displays pH, EC, TDS, or temperature readings along with self-study instructions.
Measurement & Calibration.
The pH measurements are displayed with a resolution of 0.1 and an accuracy of +/-0.1 pH, while the EC and TDS measurements are displayed with a resolution of 0.01 mS/cm and 1 ppm (mg/L) and a full scale accuracy of 2%. The EC range of the is from 0.00 to 4.00 mS/cm and TDS is from 0 to 1999 ppm. The temperature correction coefficient (β) is fixed at 2%/oC and allows automatic temperature compensated measurements of EC and TDS.
The HI9813-51 is a basic pH/EC/TDS meter that is manually calibrated to one point using two trimmers. pH is calibrated to pH 7.01 while EC/TDS is calibrated to either 1.41 mS/cm (1413 µS/cm) or 1500 ppm. The LCD has a battery life indicator as well as on-screen instructional messages. The included probe is a reinforced pH electrode with a polypropylene housing and built-in EC/TDS and temperature sensors. The amplifier for the pH electrode prevents interference from humidity and electrical noise from common sources, including motors, ballasts or pumps.
Contents & Benefits

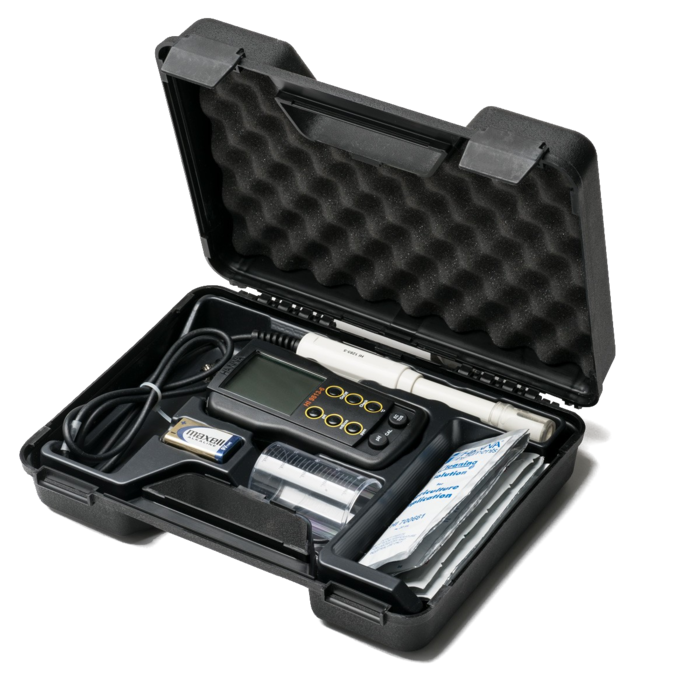

The meter is supplied with the pH/EC/TDS/°C probe with Cal-CheckTM, HI70007 bag of pH 7.01 buffer solution (1), HI70442 bag of 1500 ppm calibration solution (1), HI70031 1413 µS/cm bag of calibration solution (1), HI700661 bag of electrode cleaning solution (2), HI50021 bag of calibration control solution (2), 9V battery, instruction manual and sturdy carrying case.
- 3 in 1 probe with pH, EC/TDS and temperature sensors
- Reinforced pH electrode for immunity to electrical noise including from ballasts and pumps
- Large LCD screen with tutorials.
| pH Range | 0.0 to 14.0 pH |
| pH Resolution | 0.1 pH |
| pH Accuracy (@25°C/77°F) | ±0.1 pH |
| pH Calibration | manual, one point |
| Temperature Range | 0.0 to 70.0°C / 32.0 to 158.0°F |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy (@25°C/77°F) | ±0.5°C /±1°F |
| EC Range | 0.00 to 4.00 mS/cm |
| EC Resolution | 0.01 mS/cm |
| EC Accuracy (@25°C/77°F) | ±2% F.S. |
| EC Calibration | manual, 1-point through trimmer |
| TDS Range | 0 to 1999 ppm (mg/L) |
| TDS Resolution | 1 ppm (mg/L) |
| TDS Accuracy (@25°C/77°F) | ±2% F.S. |
| TDS Conversion Factor | Variable based on reading from 0.56 to 0.72 according to the TDS 442 curve for natural water |
| Temperature Compensation | automatic from 0 to 50°C (32 to 122°F) with β=2%/°C typical |
| Power Supply | 1 x 9V alkaline battery |
| Power Consumption | approximately 150 hours of continuous use |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% |
| Dimensions | 145 x 80 x 36 mm (5.7 x 3.1 x 1.4”) |
| Weight | 230 g (8.1 oz) |
