| Dual signal digital lighting controller
Lumatek's digital control panel is a lighting controller that gives you control over one or more lighting sets. Controls temperatures in your grow room, automation of light timing and intensity, safety-controlled dimming, and on/off switching.
The Lumatek Digital Panel Plus 2.0 is a two-signal two-channel digital lighting controller. Each of the two channels (Zones) can control up to 200 Lumatek adjustable HID fixtures or ballasts with a digital RS485 signal or up to 50 LED drivers with an analog 0-10V signal. It is possible to use each Zone to control fixtures in two independent separate rooms or to control up to 400 fixtures in one room with two different light source types.
 |  |  |
Benefits:
- Control panel for up to 400 HID ballasts or 100 LED drivers;
- Two channels (Zone A & Zone B);
- Max. Number of ballasts / drivers per zone: 200 (RS485) HID or 50 (0-10V) LED;
- Total number of ballasts / drivers per controller: 400 (RS485) HID or 100 (0-10V) LED;
- 24 hour light timing and switching;
- Temperature sensor monitoring and control;
- Dimming control (in 1% increments);
- Automation of safety and temperature control;
- Simulate sunrise and sunset to reduce plant stress;
- Automation of light intensity.
Control up to 400 HID ballasts or fixtures (200 ballasts per channel - Zone A & B)
Control up to 100 LED drivers or fixtures (50 drivers per channel – Zone A & B)
Specifications:
- Power: Adaptor 100 - 240V AC 50/60Hz - DC 5V/2A
- Use with HID Ballast: 315W, 600W, 630W, 1000W;
- Use with LED fixtures: 90W, 465W, 600W, 1000W;
- Power dimming range: 10% - 115%;
- Current control accuracy: 1%;
- Temperature-controlled safety dimming range: 0°C - 40°C;
- Temperature-controlled safety switching range: 10°C - 50°C;
- Sunrise and sunset Duration: 0-30 min;
- Dimensions: 112 x 80 x 25 mm;

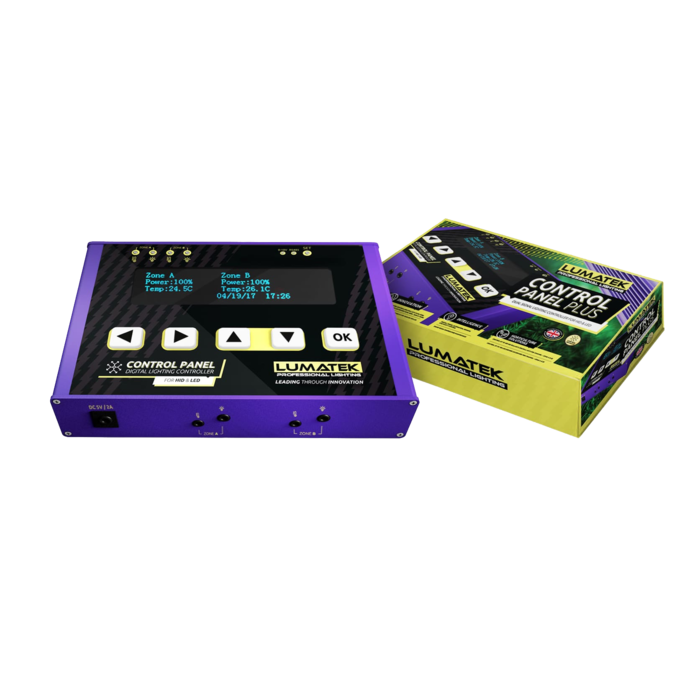

ITEMS INCLUDED:

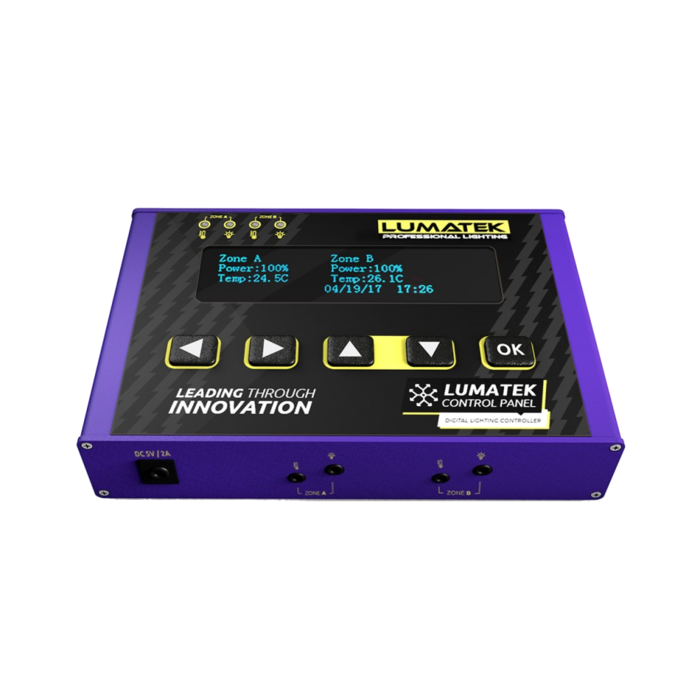

1 x Lumatek Digital Panel Plus 2.0
1 x Power adaptor and cable
2 x Temperature sensor 5m cable
2 x HID control link cable 5m
2 x LED control link cable
