GroLab Motion Sensor
Description
NOTE! All GroLab products have a longer delivery time!

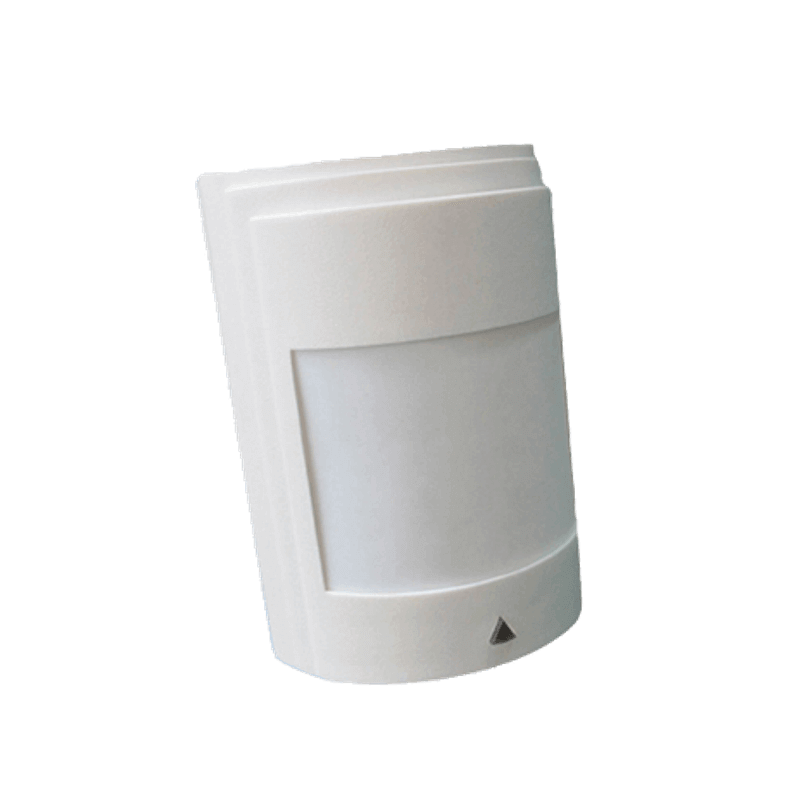

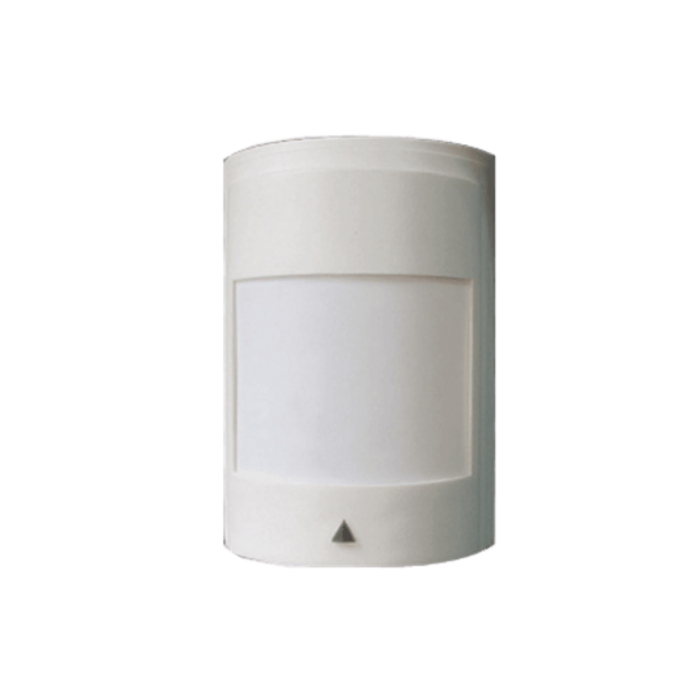

Infrared motion detector. With anti-white light function and anti-tampering system, automatically detects movements in a wide detection area.
Connect it to the GroLab TankBot and create your own security system.

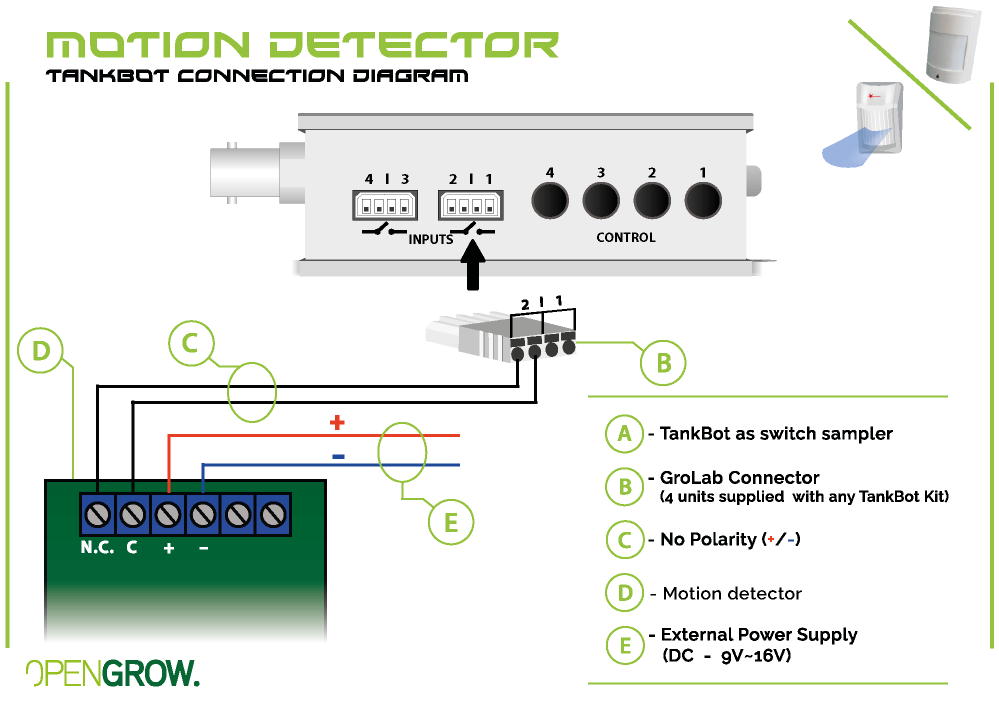

TankBot Connection - External supply
In this connection the sensor is powered by an external power supply and only the relay signal is connected to one of the TankBot inputs for sampling.

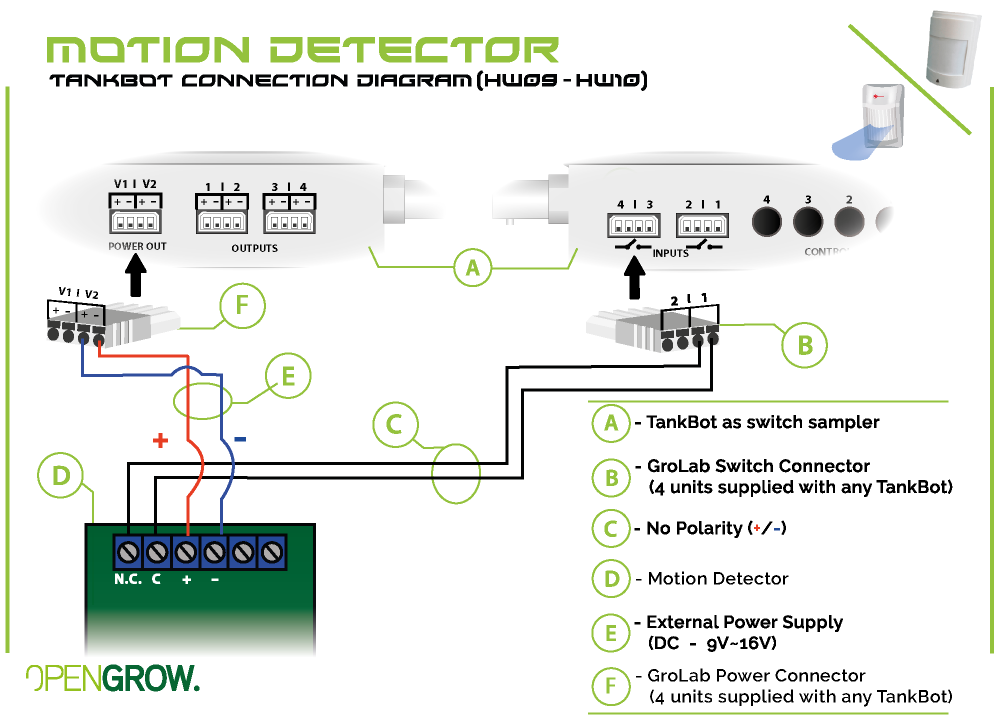

TankBot Connection - TankBot direct supply
In this connection, the sensor is powered directly by TankBot, the relay signal is connected to one of the TankBot inputs for sampling.
PowerBot Connection
Specifications
| Motion sensor |
| Operating voltage: 12VDC |
| Operation mode: N.C. (Normaly Closed) |
| Connections: 4 wires |
| Indicators: Green LED, constant light for 3 seconds |
| Anti tamper switch: N.C. (Normaly Closed) |
| Alarm Output: N.C. (Normaly Closed) |
Exterior:
|
| Dimensions: 93mm × 66mm × 52mm |
Detection:
|
| Startup time: 35s |
Installation:
|
Compatability:
|
