S-Vent Channel heater NK ~ Ventilation System Heating

Description

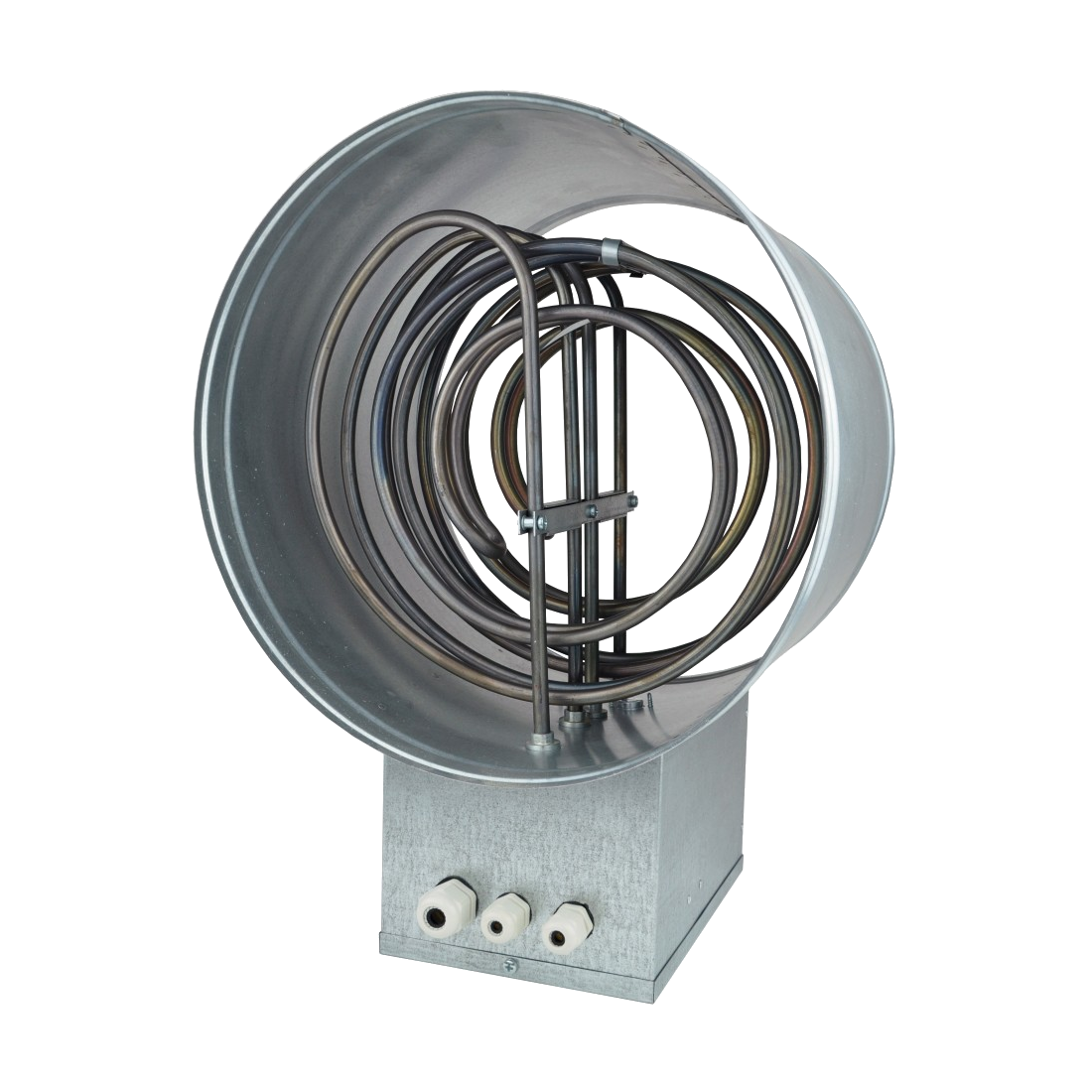

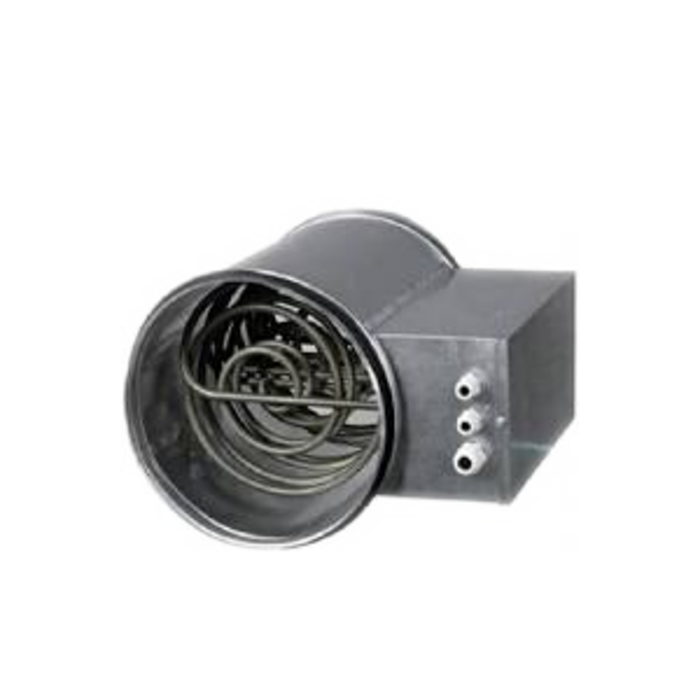

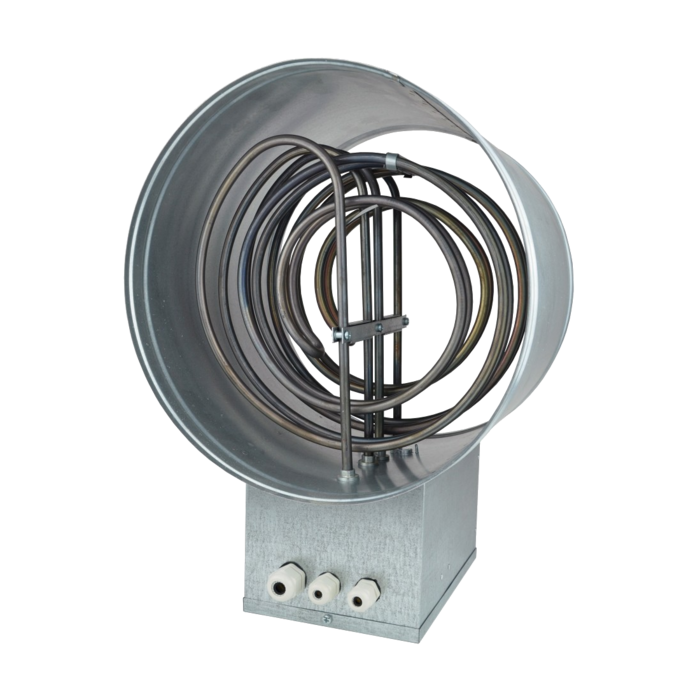

Prevent Cold in your Ventilation System with the S-Vent Channel Heater NK

With the S-Vent Channel Heater NK, you have an air heater designed for use in ventilation systems with round air hoses or tubes. These channel heaters are used in heating, ventilation and air conditioning systems for various buildings. Channel heaters are not only used in buildings, they are increasingly used in greenhouses today. This prevents cold air from falling on plants or young crops.

Specifications

NK100	NK125	NK160
Minimum Airflow: 120 m³/h Current: 7A Voltage: 230 V/50Hz Power: 1600 Watt/1,6 kW Number of heating coils x power: 2x0, 8 kW Weight: 2,9 kg Connection size: Ø100 mm Dimension: 306 x 94 x 207 mm	Minimum Airflow: 120 m³/h Current: 7A Voltage: 230 V/50Hz Power: 1600 Watt/1,6 kW Number of heating coils x power: 2 x 0,8 kW Weight: 2,7 kg Connection size: Ø125 mm Dimension: 306 x 103 x 230 mm	Minimum Airflow: 180 m³/h Current: 10.4A Voltage: 230 V/50Hz Power: 2400 Watt / 2,4 kW Number of heating coils x power: 2 x 1,2 kW Weight: 2,9 kg Connection size: Ø160 mm Dimension: 306 x 120 x 267 mm
NK200	NK250	NK315
Minimum Airflow: 180 m³/h Current: 10.4A Voltage: 230 V/50Hz Power: 2400 Watt/2,4 kW Number of heating coils x power: 2 x 1,2 kW Weight: 3,2 kg Connection size: Ø200 mm Dimension: 294 x 150 x 302 mm	Minimum Airflow: 265 m³/h Current: 10.4 A Voltage: 230 V/50Hz Power: 2400 Watt/2,4 kW Number of heating coils x power: 2 x 1,2 kW Weight: 2,6 kg Connection size: Ø250 mm Dimension: 306 x 150 x 356 mm	Minimum Airflow: 265 m³/h Current: 10.4 A Voltage: 230 V/50Hz Power: 2400 Watt/2,4 kW Number of heating coils x power: 2 x 1,2 kW Weight: 2,8 kg Connection size: Ø315 mm Dimension: 294 x 150 x 425 mm
