To measure is to know, to control is better

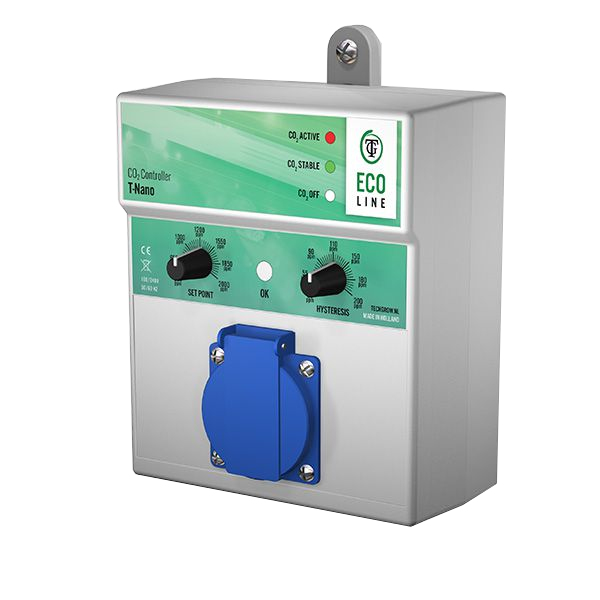

With the TechGrow T-Nano you have a no-nonsense CO2 controller from the Eco line that is very easy to operate. The Controller enables you to take highly accurate measurements in combination with TechGrow's Sensors and can be used from small to very large spaces.
Provided it is connected to the S-4 Sensor, the T-Nano can measure the CO2, humidity and temperature and send it to the connected controller. However, this Controller only controls the CO2 level. This controller is easy to operate and set up by means of two rotary knobs, with which you can set the CO2 concentration and hysteresis.
When CO2 is dosed, if the relay is switched off (e.g. during night mode) or if the climate is stable, can be read from the indication leds on this controller. The T-Nano Controller can be linked to many other TechGrow products. The minimum sensor you need is an S-Eco CO2 sensor.
Features
- Plug and play
- Can be used in small to very large spaces
- Indication LED indicates when CO2 is dosed
- Switches the CO2 source (CO2 generator, CO2 cylinder) ON/OFF by means of a 230 V relay
- Memory for setpoint and hysteresis in the event of power failure
- Automatic 110 V/230 V detection
- The external sensor contains a light sensor which ensures automatic switching between day and night mode
- Automatic detection of cable breaks or poor contact with the connected sensors
- Connection of the sensor with standard network cable (UTP). A 5-meter cable is included
- Various sensors are available separately
- Possibility to connect the TechGrow Datalogger (DL-1)
Specifications
- Controls: CO2
- Measure: CO2
- PPM range: 300-2000 ppm
- Day/Night Detection: Yes
- Light sensor: In CO2 sensor
- Input: 100/240 volts 50/60 HZ
- CO2 power output: 100 - 220 volts
- Internal consumption: 3 Watt
- CO2 Relay: 8 Amp
- CO2 Fuse: 4 Amp
- Mains cable: 3 x 0.75
- Cable length: 1.7 m
- Relay switching capacity: 8 Amp
- Relay rated: AC 5A
Compatible sensor
S-Eco ~ 0/2,000ppm | S-2 ~ 0/2,000ppm | S-4 ~ 0/2,000ppm
