| High quality LED horticultural lighting

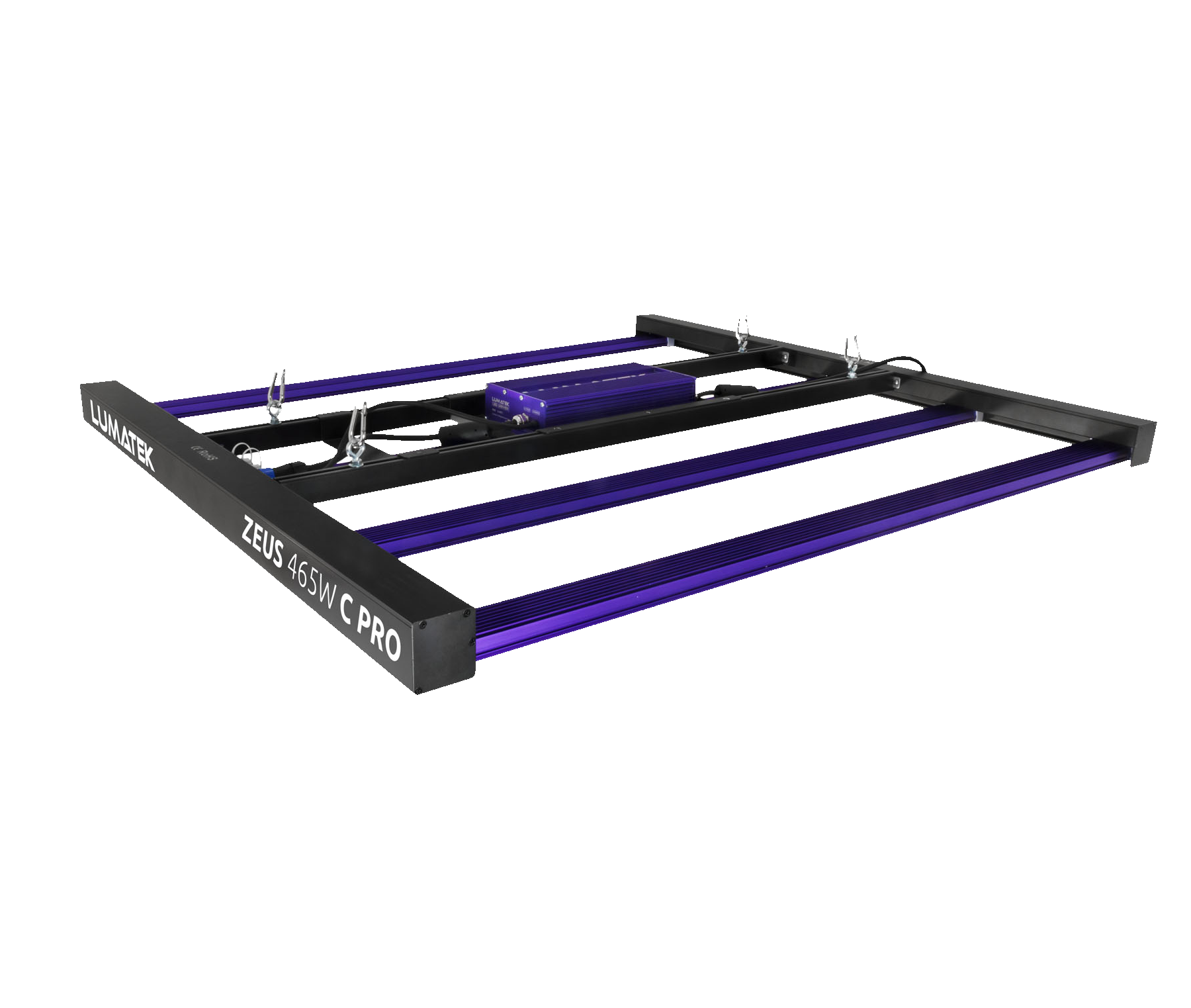

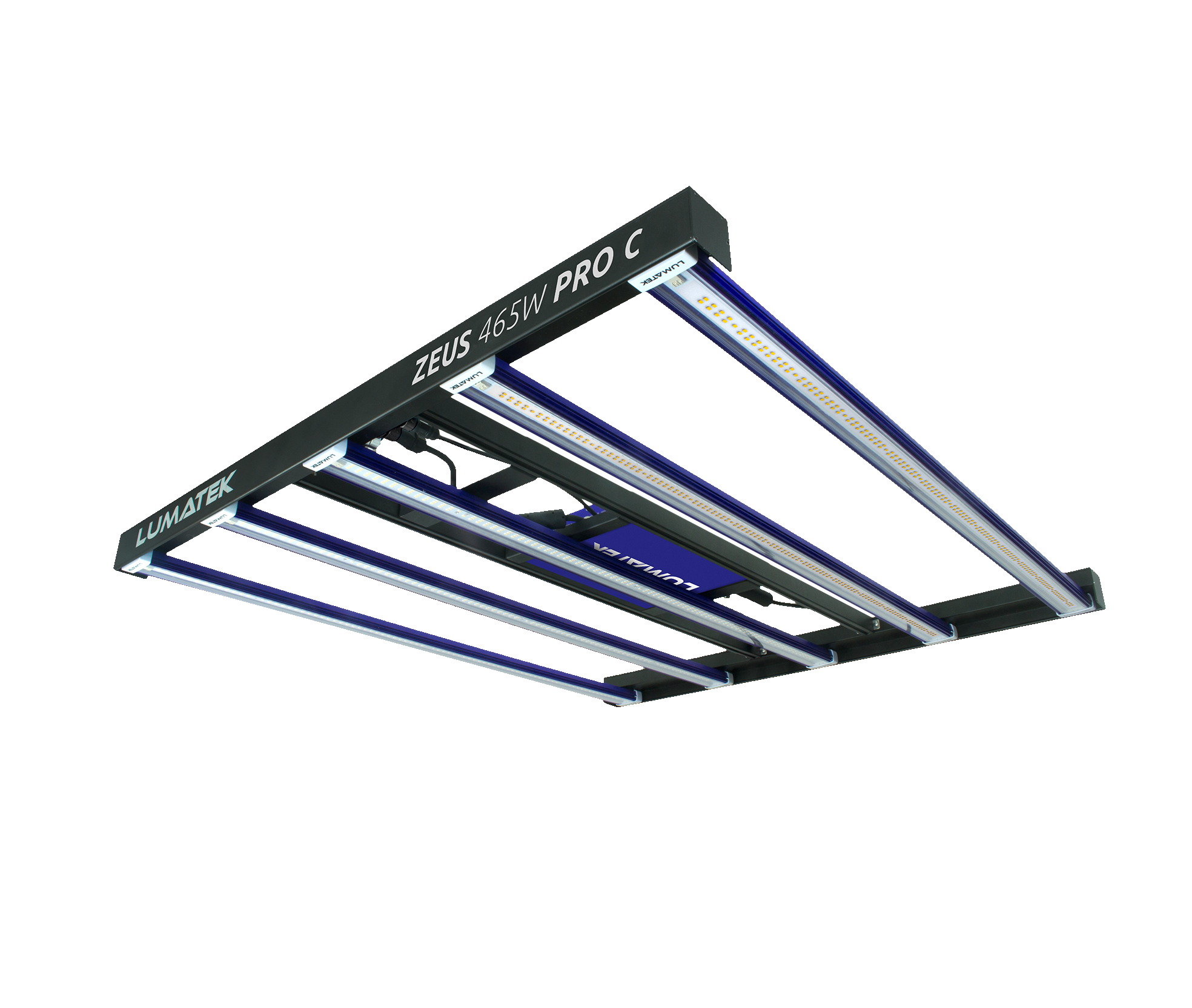

The Lumatek ZEUS 465W Compact Pro LED is a linear multilight LED fixture that produces a very high PPF of 1256 µmol/s and a photon efficiency of 2.7 µmol/J.
Lumatek full-spectrum horticultural LED solutions bring light quality (spectra) and light quantity (intensity and duration) into a balance sufficient to provide single-source lighting for the entire growth cycle, from vegetative to flowering period.
The range of LEDs provides uniform light distribution at short distances from the crop, enabling single-light grow lights for multi-layer growing systems, single grow benches in low rooms and grow tents.
Osram & Phillips
The Zeus is built using the high-quality Lumatek driver and LEDs with the highest BIN value from Osram and Lumileds Philips.
Controllable
The Zeus fixture can also be controlled externally with a Lumatek digital panel or any other control system that uses a 0-10V output signal. With automatic dimming, temperature safety control, Sunrise & Sunset mode for up to 100 fixtures per controller. Even if your universal controller has an RJ port interface, you can still control our LEDs using a signal converter RJ to 0-10V control adapter.
Features
- Very high efficiency 2.7 µmol/J;
- High PPF output for high intensity 1256 µmol/s;
- Lumatek LED drivers of high quality;
- LEDs with the best BIN value;
- Balanced full spectrum;
- Remote control with Lumatek Control Panel;
- Replaceable 93W magnetic LED modules;
- Fully dimmable;
- User-friendly Plug & Play mounting;
- Detachable driver for remote operation.
Specifications
- Efficiency: 2.7 µmol/J;
- PPF: 1256 µmol/s;
- Input voltage: 200-240V, 50-60Hz;
- Power consumption: 465W;
- Recommended surface area: 1.2 x 1.2 m;
- Protection Class: IP65;
- Lifetime: 60,000 hours;
- Light distribution: 120°;
- LEDs: Osram and Lumileds Philips Diodes;
- Diode ratio: red 15%, white 85%;
- Diode efficiency: Osram Dark Red 660NM 3.3 μmol/J, Lumileds Philips White 2.9 μmol/J;
- Dimmable: OFF, 25%, 50%, 75%, 100% with 0-10V light dimmer (included);
- Thermal management: Passive;
- Power factor: > 0.95;
- Location of driver: fixed in structure or removable for remote use (extension cords sold
- separately);
- External control: With Lumatek Digital Panel;
- Weight: 11 kg;
- Dimensions: 998 x 900 x 51.9 mm;
- Spectrum: Full spectrum;
Items Included:
- 5 x Lumatek 93W Full-Spectrum Magnet Light Bars;
- 1 x Lumatek 465W driver with connection cables;
- 1 x LED structure with connection cables;
- 1 x 0-10V light dimmer + Velcro;
- 2 x metal cable hangers;
