Description
SMSCOM SPC Mk2

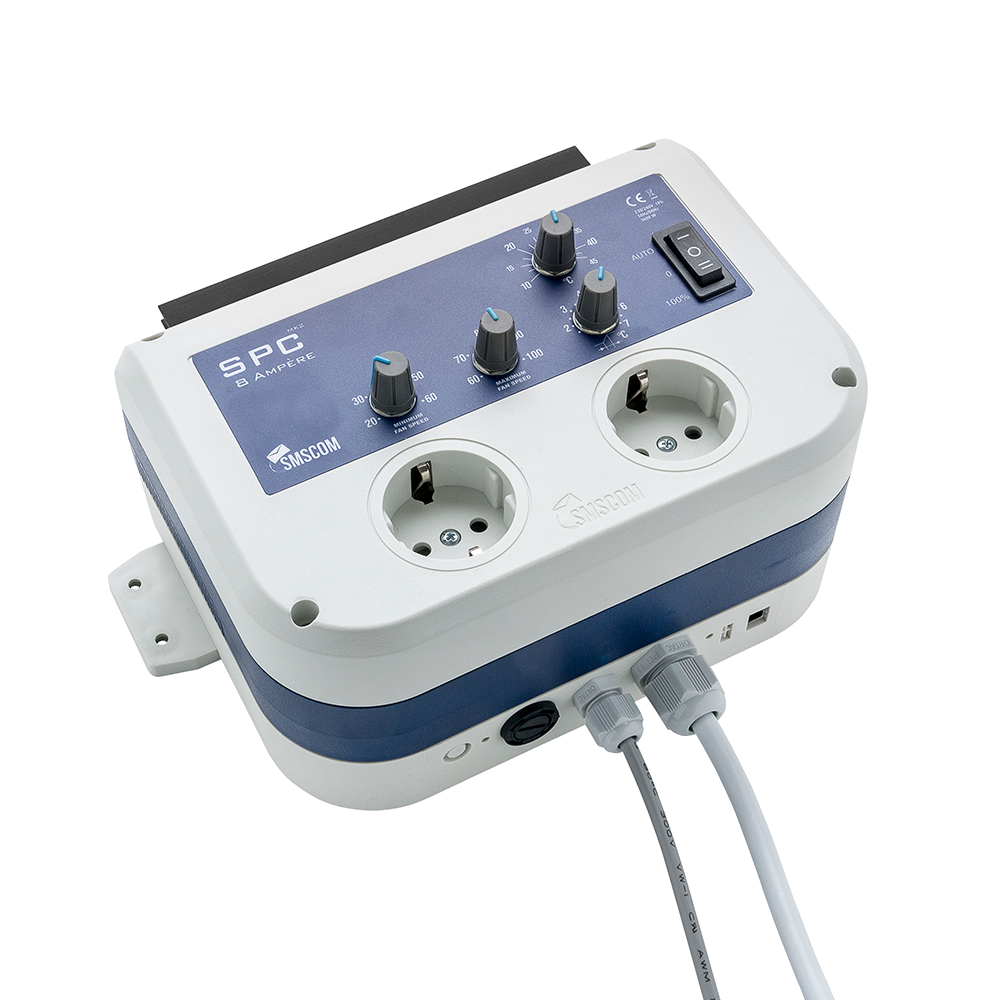

With the SMSCOM SPC Mk2 you have an automatic climate controller for controlling your ventilators. The SMSCOM SPC Mk2 is electronically controlled and ensures the correct temperature in your grow room in an accurate manner. This controller regulates the power of your fans and thus maintains the correct temperature, the inlet or outlet fans can both be controlled on this controller. The SPCs from SMSCOM have an extra connection which allows the controllers to be expanded with 5 'Slaves' per controller.
Properties
- Plug & Play thanks to its clear layout and easy operation
- 2 different modes Automatic or 100%
- Accurate temperature-controlled speed control
- Temperature sensor with 5 meter cable
- Minimum speed adjustable from 20% to 60%
- Maximum speed adjustable from 60% to 100%
- Desired temperature can be set between 10°C and 45°C
- Temperature bandwidth adjustable between 2°C and 7°C
User manual
- Automatic temperature control
- Connect the fan(s) to one of the two power sockets, it doesn't matter if there is an inlet or outlet motor or even multiple motors plugged in as long as the total maximum amperage is not exceeded
- Set with the left most knob the desired minimum speed, for example 30%.
- With the central dial set the desired maximum speed, for example 80%.
- With the right rotary knob set the desired bandwidth, for example 3°C.
- With the upper rotary knob set the desired temperature, e.g. 25°C.
- Plug in the SPC MK2 and set the switch to "AUTO", the SPC MK2 will start at 100% for a few seconds and then switch to the desired program.
- Manual at full power
- Plug the SPC MK2 into the power outlet and set the switch to "100%".
