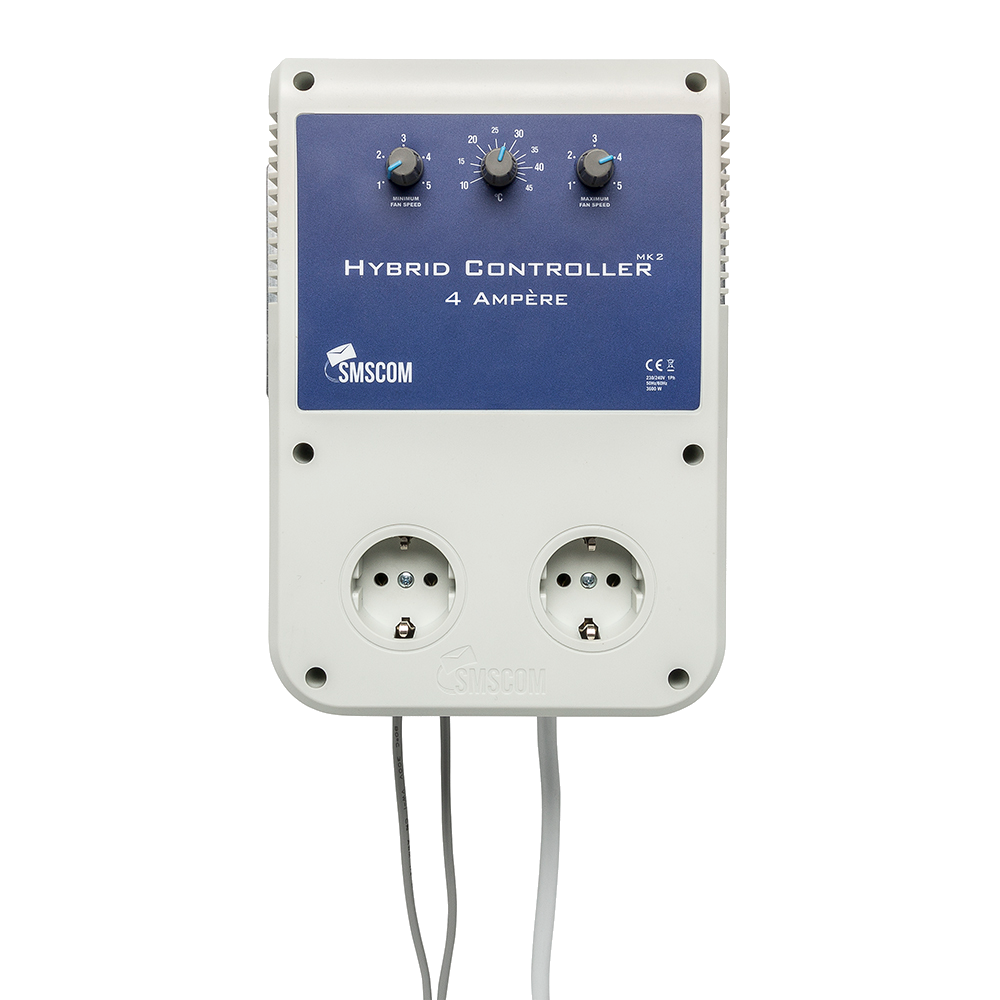

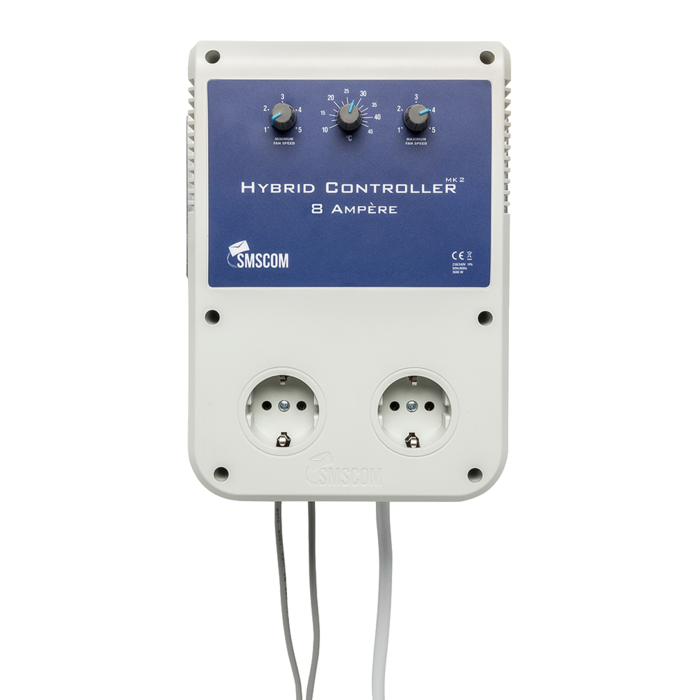

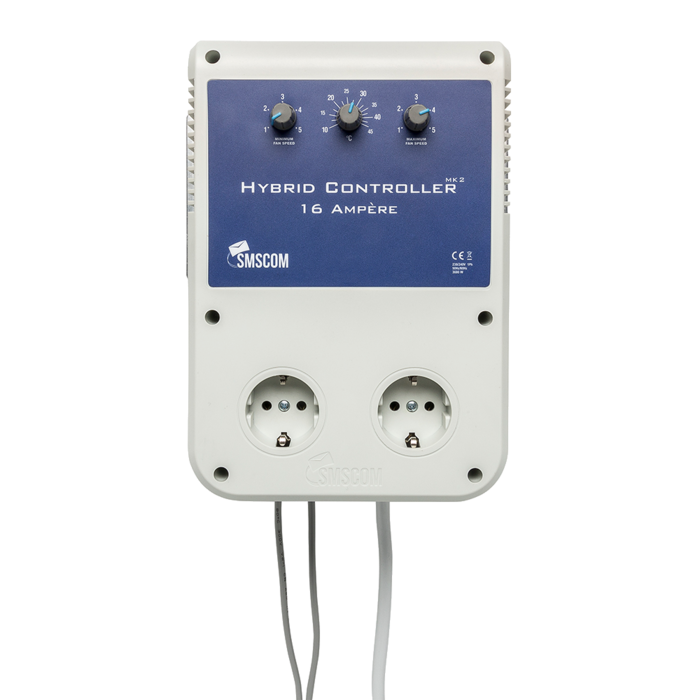

SMSCOM Hybrid Controller Mk2
With the SMSCOM Hybrid Controller Mk2 you have software controlled technology, combined with a mechanical 5 step system to control the speed of your fans. This controller is designed to keep room temperature constant and airflow under control at all times. The presence of a heavy duty 5 step transformer makes this controller the most reliable and quiet controller on the market, this transformer ensures that your fan does not buzz or hum. Because of the Pro software in this controller you can connect a light sensor to this controller, through this sensor you can also control the humidity at night. This sensor is separately available.
Pro-Function
The Pro-function of the Hybrid Controller in combination with the light sensor means that the controller knows when it is night time and takes into account humid air. During this program the suction is activated every hour without influencing the temperature, this prevents an accumulation of moist air and the development of mould. You can see that the night program is active by the blinking LED 'Humidity'. As soon as it is light, the PRO function is switched off. From that moment on, the controller regulates the suction again in the normal way. The night program is important because condensation mainly occurs at night due to a lower temperature compared to during the day.
Properties
- Controls the fan speed
- 5 steps
- SMSCOM Hybrid technology
- Non buzzing
- Automatic with thermostat
- Plug and play
- Maximum capacity 4A | 8A | 16A
User manual
- Connect your fans correctly to the sockets (small fan = IN/large fan = OUT)
- Set the desired MINIMUM fan speed with button 1 (e.g. 30%)
- Set the desired temperature with button 2 (e.g. 25 °C)
- Set the desired MAXIMUM fan speed with button 3 (e.g. 95%)
- Place the temperature sensor in your room. Note, not in direct airflow or directly under a light source;
- Place the light sensor in your room, facing the light source, do not remove the cap yet!
- Now connect the Hybrid Controller to the mains.
- Naturally, you can also connect only one fan, in which case connect it to "FAN AIR OUT".
- Do not forget to remove the cover of the light sensor in order to activate the PRO function!
